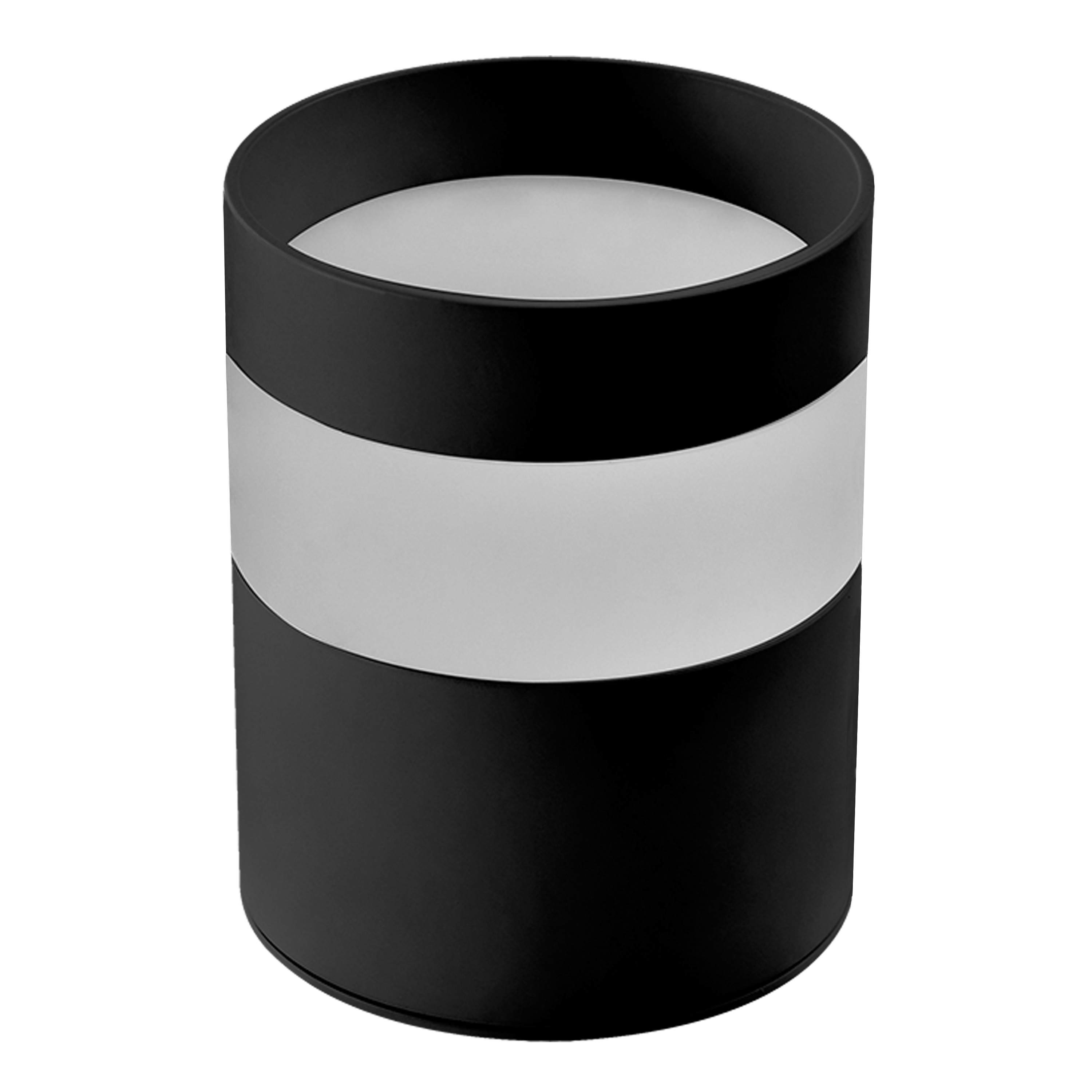

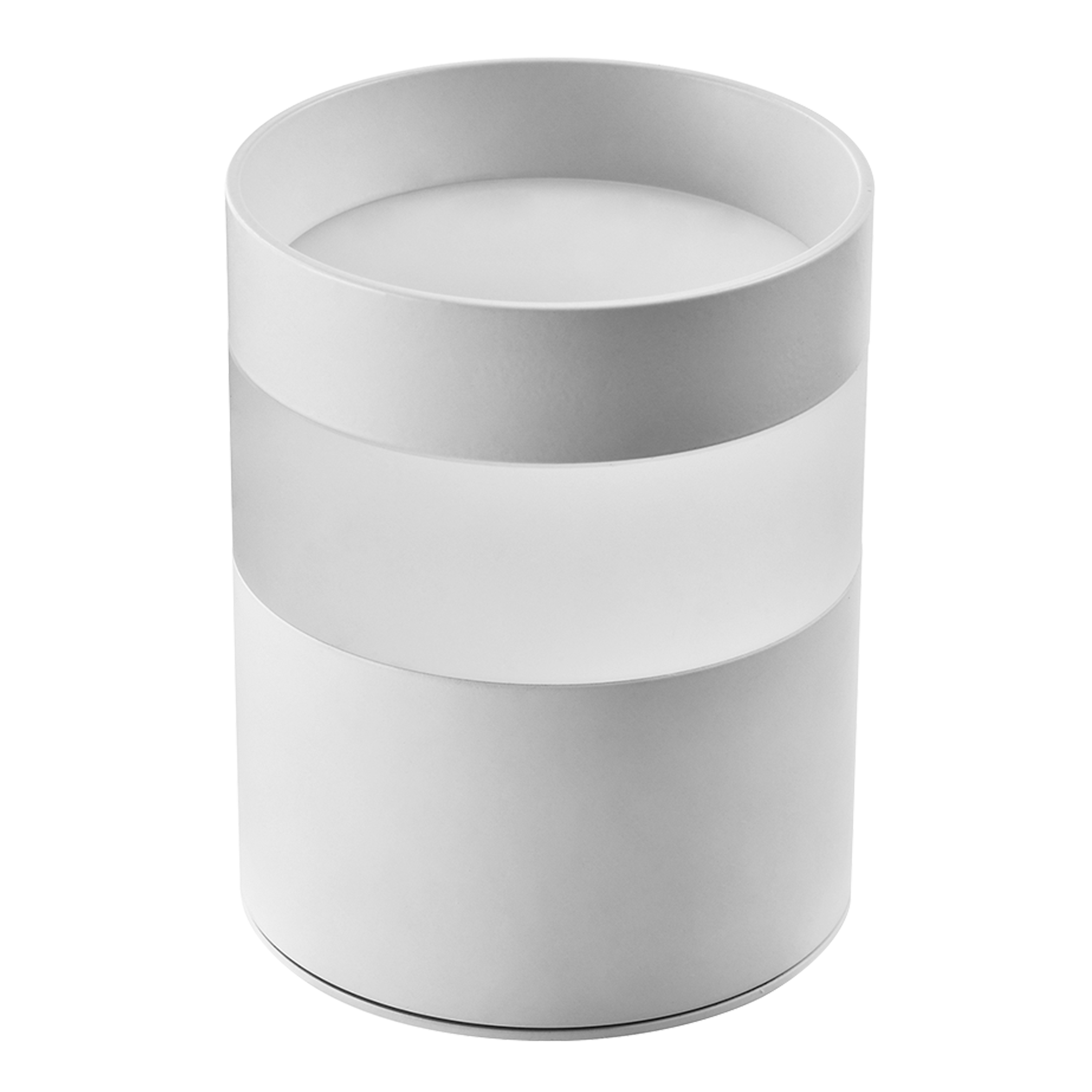

Product Feature
-Die-cast aluminum lamp body, efficient heat dissipation, prolong service life
-Simple black and white, atmospheric fashion, decoration all match
-PC mask, good light transmission performance, high brightness
Application
-Living room
-bedroom
-Clothing room
-Exhibition hall
-Restaurant
| Style Code : HYD-226H | Driver : Built in driver |
| Power : 12W | Supply Voltage : 220V-240V |
| CCT : 3000K / 4000K / 6500K | Supply Frequency : 50-60Hz |
| Dimension : Ф80*100mm | Supply Current : 0.18A Max |
| Cut out : N/A | Power Factor : 0.55 |
| Material : Die-casting Aluminum | LED Driver Current : 300mA |
| Diffuser : PMMA | LED Driver Voltage : 176-280V |
| Installation Method : Surface mounted | LED Driver Efficiency : ≥83% |
| Protection Grade : IP20 | SDCM : <5 strong="">CRI : >80 |
| Warranty : 5 yeas | LED Model : 226H-10W |
| Work Temperature : -20-60℃ | Luminous Flux : 577 lm |
| Storage Temperature : -25-60℃ | Max Luminous Intensity : 192 cd |
| Beam Angle : 96° | |
| Luminous Efficacy : 61 lm/W |

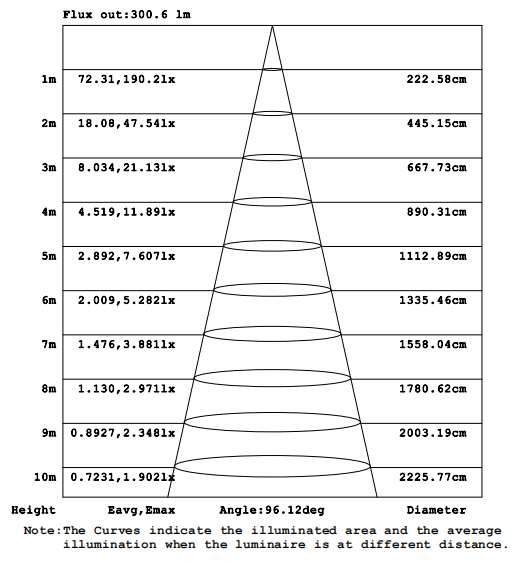

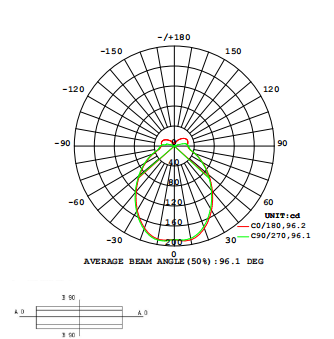

HYD-226H-3000K IES
HYD-226H
Download File
