| Style Code : HYD-701 | Installation Method : Loop |
| Power : 100W/150W/200W | Work Temperature : -10-45℃ |
| CCT : 3000K / 4000K / 6500K | Storage Temperature : -25-60℃ |
| Protection Grade : IP65 | Driver : Non-Isolated flicker free driver |
| SDCM : <5 CRI : >80 | Supply Voltage : 220V-240V |
| Material : Die-casting Aluminum | Supply Frequency : 50-60Hz |
| Lens : 90° | Warranty : 5 yeas |
| Item code | HYD-701-100W | HYD-701-150W | HYD-701-200W |
| Dimension(mm) | Ф250*160mm | Ф300*170mm | Ф350*180mm |
| Cut out(mm) | N/A | ||
| Supply Current (mA) | 0.7A Max | 0.9A Max | 1.1A Max |
| Power Consumption (W) | 100W | 150W | 200W |
| Power Factor | >0.9 | ||
| THD (%) | ≤15% | ||
| LED Driver Current (mA) | 400mA | 600mA | 800mA |
| LED Driver Voltage (V) | 180-260V | ||
| LED Driver Efficiency (%) | ≥95% | ||
| LED Model | SMD | ||
| LED Qty.(pcs) | 120 | 200 | 240 |
| Luminous Flux ±10% (lm) | 13000 | 19500 | 26000 |
| Max Luminous Intensity (cd) | 7268 | 11357 | 19713 |
| Beam Angle (°) | 79.7 | 77.5 | 65.3 |
| Luminous Efficacy (lm/W) | 130 | 130 | 130 |
| Light Distribution Curve |  |  |  |
| Light Distribution Curve |  |  |  |

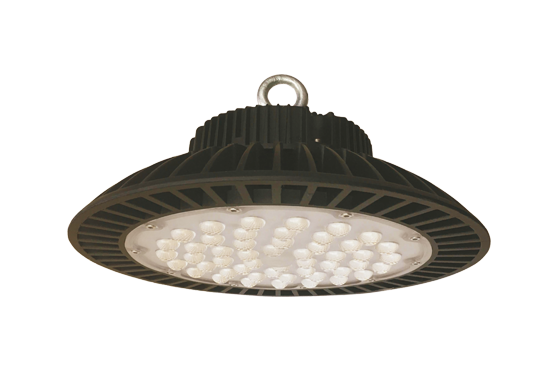

HYD-701
