| Style Code : HYD-122C | Installation Method : Surface |
| Power : 30W / 40W | Work Temperature : -10-45℃ |
| CCT : 3000K / 4000K / 6500K | Storage Temperature : -25-60℃ |
| Protection Grade : IP20 | Driver : Isolated flicker free driver |
| SDCM : <5 CRI : >80 | Supply Voltage : 180V-240V |
| Material : Die-casting Aluminum | Supply Frequency : 50-60Hz |
| Diffuser : PC | Warranty : 5 yeas |
| Item code | HYD-122C/R-30W | HYD-122C/R-40W | HYD-122C/S-30W | HYD-122C/S-40W |
| Dimension(mm) | Φ225*50 | Φ300*50 | 225*225*50 | 300*300*50 |
| Cut out(mm) | N/A | |||
| Supply Current (mA) | 0.25A Max | 0.35A Max | 0.25A Max | 0.35A Max |
| Power Consumption (W) | 30W | 40W | 30W | 40W |
| Power Factor | >0.9 | |||
| THD (%) | ＜10% | |||
| LED Driver Current (mA) | 750mA | 1000mA | 750mA | 1000mA |
| LED Driver Voltage (V) | 30-42V | 30-42V | 30-42V | 30-42V |
| LED Driver Efficiency (%) | ≥87% | ≥86% | ≥87% | ≥86% |
| LED Model | SMD | |||
| LED Qty.(pcs) | 192 | 300 | 192 | 300 |
| Luminous Flux ±10% (lm) | 3300 | 4600 | 3300 | 4400 |
| Max Luminous Intensity (cd) | 1024 | 1436 | 1048 | 1334 |
| Beam Angle (°) | 115.1 | 112.4 | 112.7 | 113.9 |
| Luminous Efficacy (lm/W) | 110 | 115 | 110 | 110 |
| Light Distribution Curve |  |  |  |  |
| Light Distribution Curve |  |  |  |  |

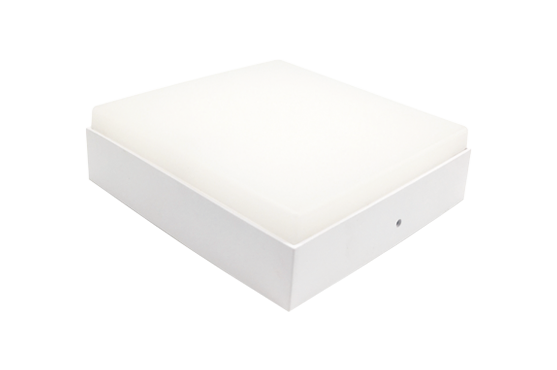

HYD-122C/R
